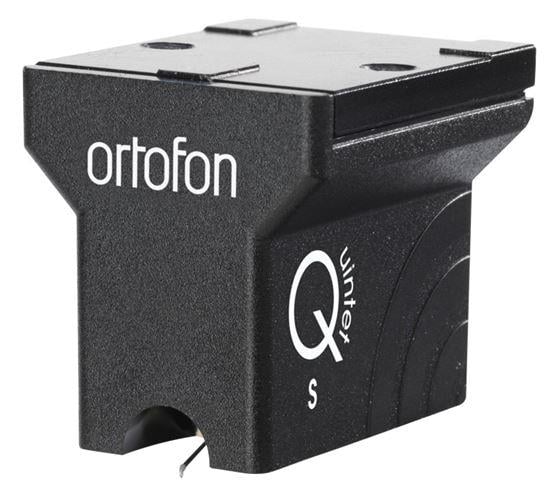

MC QUINTET BLACK Pikap İğnesi
MC Quintet Black S Technical data
Output voltage at 1000 Hz, 5cm/sec. - 0.3 mV
Channel balance at 1 kHz - < 1.0 dB
Channel separation at 1 kHz - > 23 dB
Channel separation at 15 kHz - > 15 dB
Frequency range at - 3dB - 20 - 25.000 Hz
Frequency response 20-20.000 Hz - +/- 1.5 dB
Tracking ability at 315Hz at recommended tracking force *) - 80 µm
Compliance, dynamic, lateral - 15 µm/mN
Stylus type - Nude Shibata on Sapphire cantilever
Stylus tip radius - r/R 6/50 µm
Tracking force range - 2.1-2.5 g (21-25 mN)
Tracking force, recommended - 2.3 g (23 mN)
*) Typical value
Compatibility with Rega brand TT/TA:
REGA brand cartridges’ height from stylus tip to the top cartridge mounting surface is lower than standard. Therefore you would need spacers to ensure the correct set-up of the Ortofon cartridge. Please read about cartridge set-up and alignment on tonearm on our FAQ.
Adjusting the height of your Rega tonearm is easy with Acoustic Signature's Spacer Set. It allows you to adjust the height from 0.5 mm to 3.5 mm in precise steps of 0.5 mm - without removing the tone arm. Simply loosen the screws, insert the AS-spacer, then lock the screws back down, and you're tonearm is ready to play.
3.2 - 4 mm spacers should be enough for Quintet cartridge.
