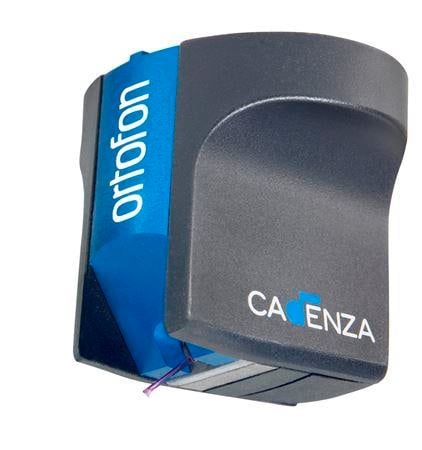

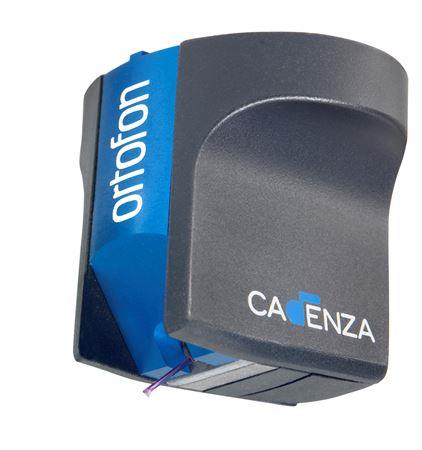

MC CADENZA BLUE Pikap İğnesi
MC Cadenza Blue Technical data
Output voltage at 1 kHz 5 cm/sec - 0,5 mV
Channel balance - < 1,2 dB
Channel separation at 1 kHz - > 23 dB
Channel separation at 15 kHz - > 15 dB
Frequency range at -3 dB - 20 Hz - 50 kHz
Frequency response 20 Hz - 20 kHz - +2/-1
Tracking ability at 315 Hz at recommended tracking force *) - 80 μm
Compliance, dynamic, lateral - 12 μm/mN
Stylus type - Nude FG 70 on Ruby cantilever
Stylus tip radius - r/R 6/70
Tracking force range - 2,2-2,7 g (22-27 mN)
Tracking force recommended - 2,5 g (25 mN)
*) Typical value
Tracking angle - 20º
Internal impedance, DC resistance - 5 Ohm
Recommended load impedance - 50-200 Ohm
Cartridge body material - Stainless steel Aluminium
Cartridge colour - Blue/Black
Cartridge weight - 10,7 g
