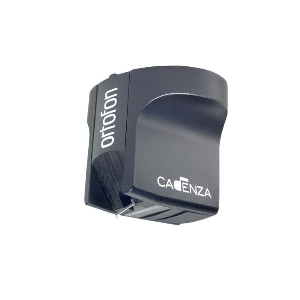

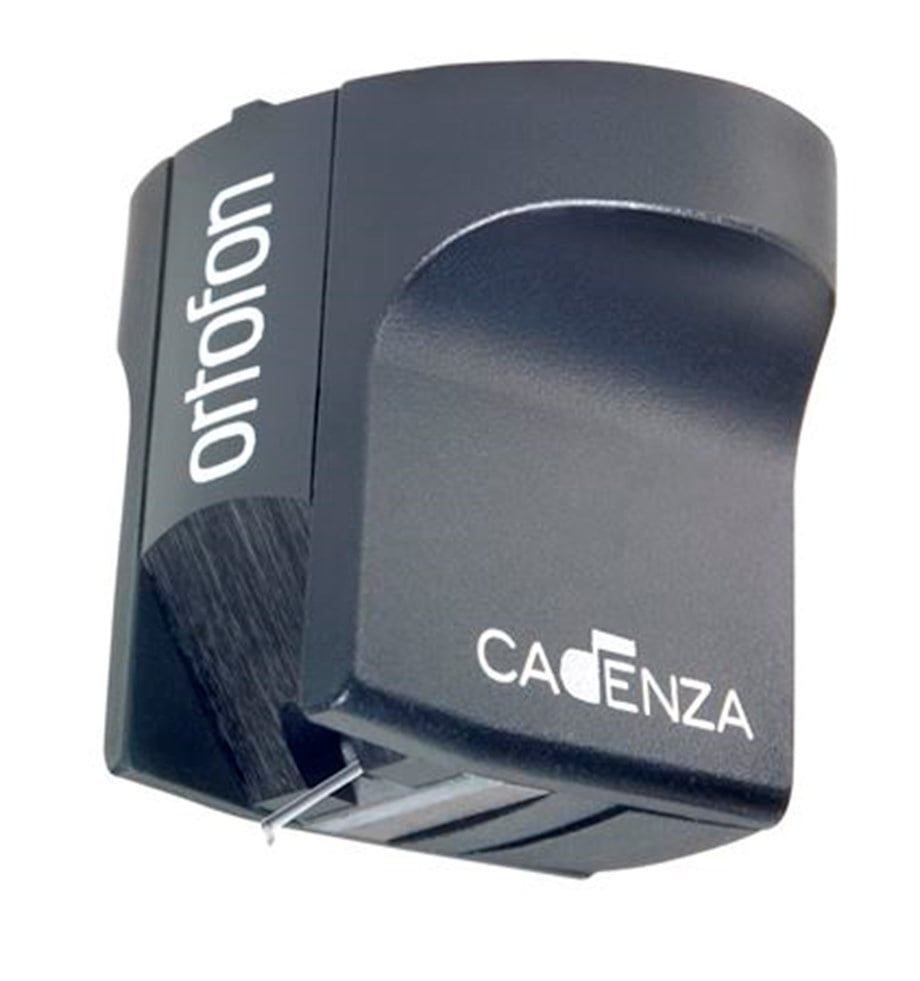

MC CADENZA BLACK Pikap İğnesi
MC Cadenza Black Technical data
Output voltage at 1000 Hz, 5cm/sec. - 0,33 mV
Channel balance at 1 kHz - < 0,8 dB
Channel separation at 1 kHz - > 27 dB
Channel separation at 15 kHz - > 20 dB
Frequency range at - 3dB - 20 - 60.000 Hz
Frequency response 20 kHz - 20 kHz - +1,5/0
Tracking ability at 315Hz at recommended tracking force *) - 90 µm
Compliance, dynamic, lateral - 16 µm/mN
Stylus type - Nude Shibata on Boron cantilever
Stylus tip radius - r/R 6/50 µm
Tracking force range - 2,0-2,5 g (20-25 mN)
Tracking force, recommended - 2,3 g (23 mN)
*) Typical value
Tracking angle - 20°
Internal impedance, DC resistance - 5 Ohm
Recommended load impedance - > 10 Ohm
Cartridge body material - Stainless steel Aluminium
Cartridge colour - Black/Black
Cartridge weight - 10,7 gram
