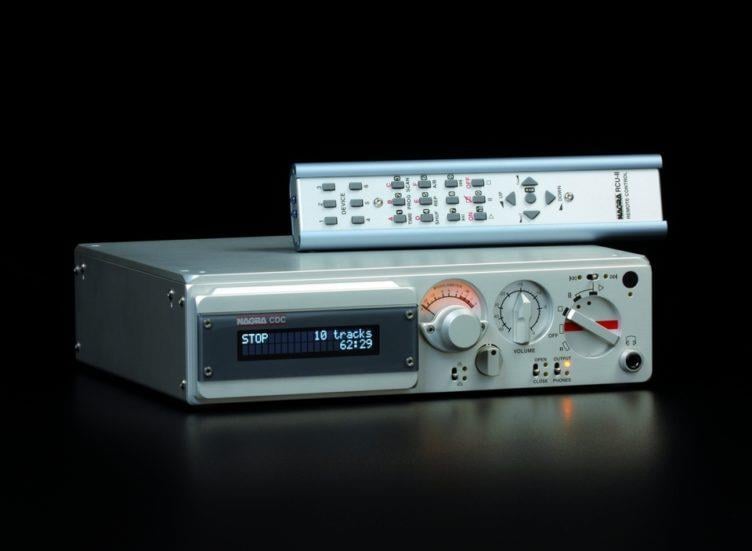

NAGRA CDC Pre-CD çalar +VFS izolasyon platformu

Çok temiz durumda.

TECHNICAL SPECIFICATION

ELECTRONICS

Compatibility: CD Audio, CD-R, CD-RW

D/A converter:            24 bits (CDC ad CDP)

Oversampling:            8x (352.8 KHz)

Bandwidth:     20 Hz (0dB) to 20 KHz (-1dB)

Signal-to-noise ratio:   > 108 dB, measured ASA “A” weighted

THD + N:          < 0.003 %

Channel separation:   90 dB

Jitter:    negligible (< 200 ps)

OUTPUTS

Analogue outputs:      electronically balanced on XLR (600 Ω) unbalanced on RCA (50 Ω)

Output level:   1 or 3.5 V RMS selectable (at 0 dBFS)

Digital outputs:           AES, S/PDIF, Toslink

GENERAL

External supply:           12V

Consumption: 3.8 Kg (6.6 lbs)

Power consumption:   6W constant, 12W maximum

Dimensions:     27.7 x 254 x 76 mm (12.2 x 10 x 3 inches)

Weight:            4 kg (8.8 lbs)
