Çok temiz durumda 2 yıl önce alındı. kutuları ve kullanma kılavuzu mevcut.
Özellikler:
SPDIF inputs 2 x Toslink, RCA & XLR inputs
Resolution up to 24 bit, sampling rate up to 192 kHz
2 x SC947-02LF input transformer
WM8805 demodulator
USB input USB 2.0 High Speed, Class 2 compatible, asynchronous
PCM resolution up to 32 bit
sampling rate up to 384 kHz
DSD 2.8MHz, 5.6MHz
On-board two low-jitter oscillators
Internal power
Ethernet input (optional) UPnPTM AV 2.0 / DLNA
Plays and decode common audio formats from HTTP streams
Resolution up to 24 bit, sampling rate up to 192 kHz
Support for DSD audio 2.8 MHz, 5.6 MHz
Bit-perfect data transmission
2-channel asynchronous endpoint for jitter-free stereo playback
Support for gapless playback
Supported Audio File Formats:
Compressed Audio: MP3, AAC
Lossless formats in PCM: FLAC, ALAC, WAV, AIFF
Lossless formats in DSD: DSF, DIFF
On-board low-jitter oscillators
SPDIF output RCA
Resolution up to 24 bit, sampling rate up to 192 kHz
Feed
60,000 µF chemical capacitor
Polypropylene capacitor
3 x 220µF 250V
(if ethernet option 4 x 220 µF 250 V)
Converter
Reference DAC AKM4495
Digital filter Standard and Short Delay
Reply filter Sharp and Slow Roll Off
32-bit resolution filter
PCM converter Resolution 32 bits, sampling rate up to 384 kHz
DSD converter 2.8 MHz , 5.6 MHz Native
Master clock 0.3 ps
Analog stage
Analog outputs RCA unbalanced 2.8 Vrms
XLR balanced 5.6 Vrms
Passive Analog Filter ''LRC''
Discrete components
Feed
405,000 μF chemical capacitor
4000µF Organic Capacitor
Polypropylene capacitor 2 x 220 µF 250 V
Converter box
Type Aluminum (thickness 3mm)
Dimensions (in mm) 445 x 345 x 130
Weight 11kg

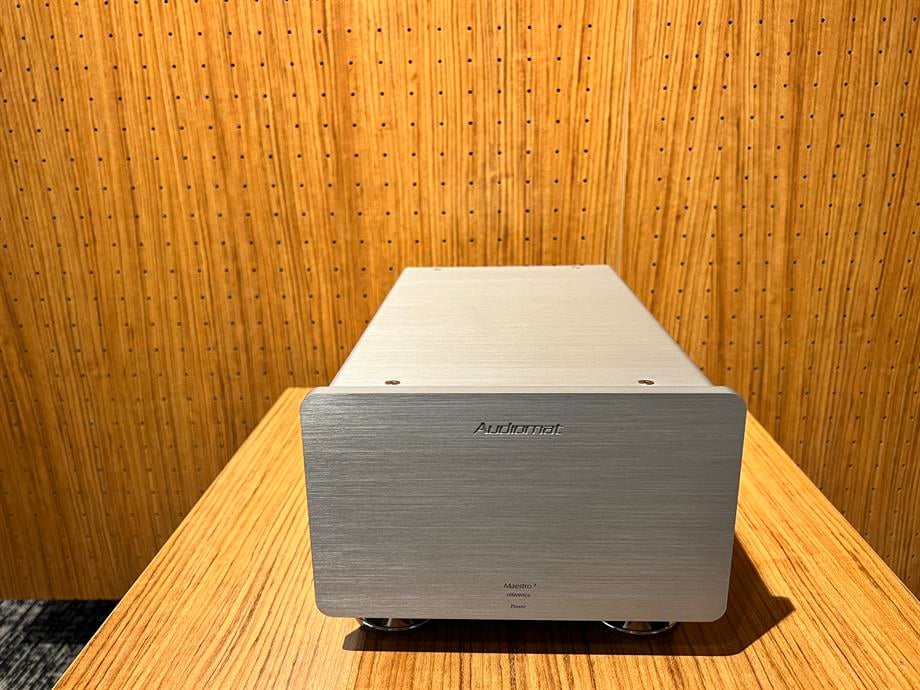

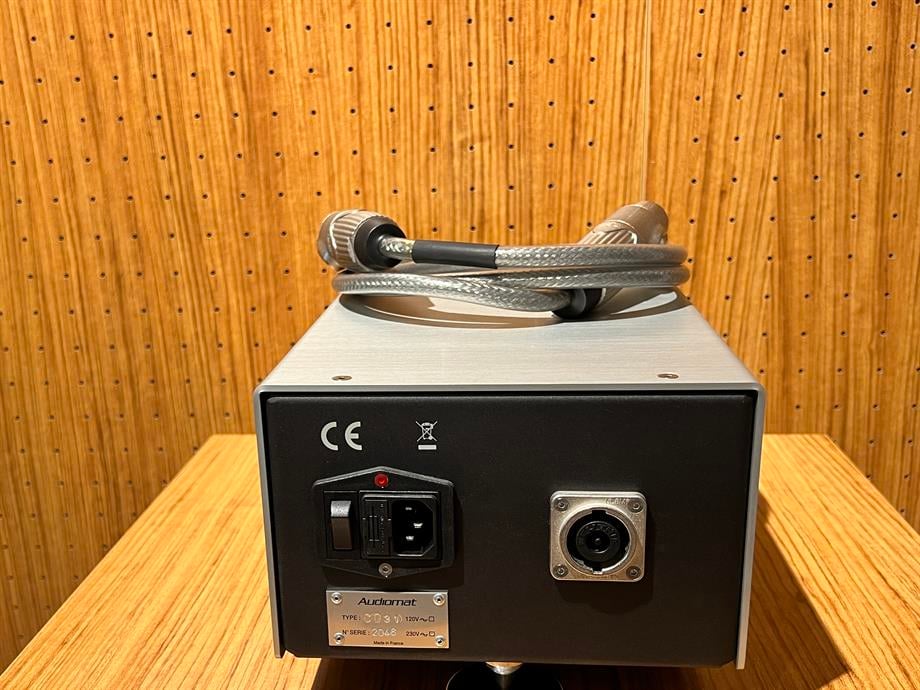

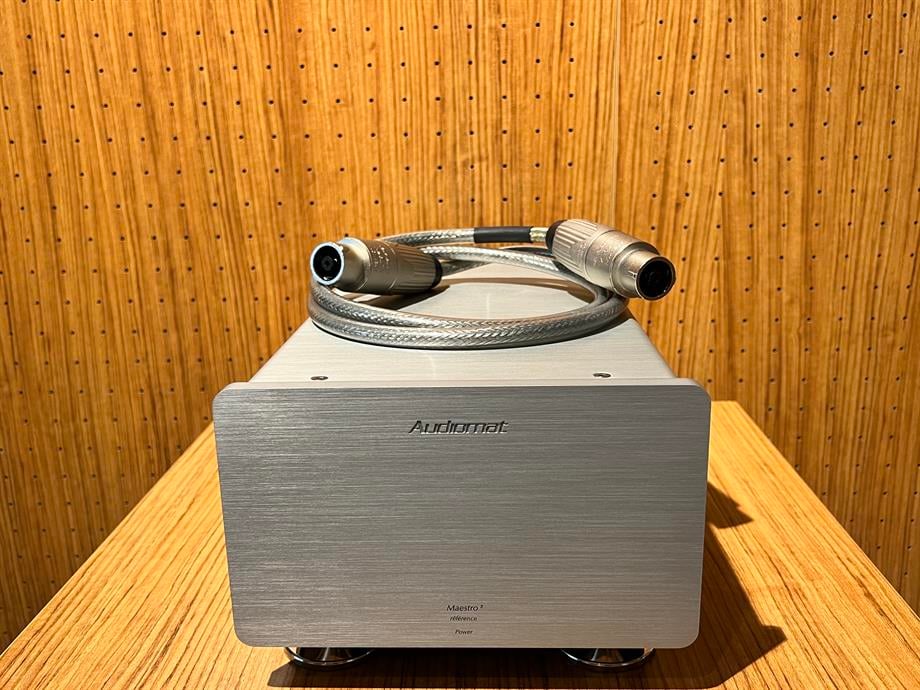

Separate power box
Dimensions (in mm) 150 x 220 x 360
Inter-box cable 8 x 2.5 mm² shielded
Low induction transformers 2x 350 VA
Power supply weight 11 kg
