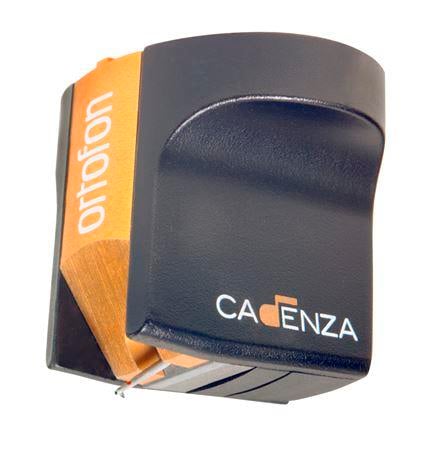

MC CADENZA BRONZE Pikap İğnesi
MC Cadenza Bronze Technical data
Output voltage at 1000 Hz, 5cm/sec. - 0,4 mV
Channel balance at 1 kHz - < 1 dB
Channel separation at 1 kHz - > 24 dB
Channel separation at 15 kHz - > 20 dB
Frequency range at - 3dB - 20 - 55 kHz
Frequency response 20 Hz - 20 kHz - +/-1,5
Tracking ability at 315Hz at recommended tracking force *) - 80 µm
Compliance, dynamic, lateral - 12 µm/mN
Stylus type - Nude Ortofon Replicant on conical alu cantilever
Stylus tip radius - r/R 5/100 µm
Tracking force range - 2,2-2,7 g (22-27 mN)
Tracking force, recommended - 2,5 g (25 mN)
*) Typical value
Tracking angle - 23°
Internal impedance, DC resistance - 5 Ohm
Recommended load impedance - 50-200 Ohm
Cartridge body material - Stainless steel / Aluminium
Cartridge colour - Bronze/Black
Cartridge weight - 10,7 gram
